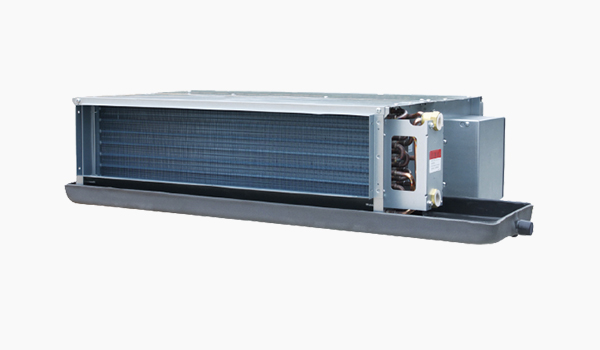

Chilled Water Ceiling Concealed FCU
- Floor mounted fan section are available from 2000 CFM to 35000 CFM.
- Ceiling suspended fan section are available from 1200 CFM to 4000 CFM (Direct Driven) and 3000 CFM to 6000 CFM (Belt Driven)
- Calculations of cooling loads and air flow requirements for each control zone. Psychrometric analysis for critical areas, calculation of reheat figure, selections of apparatus dew points and finalizing air treatment process.
Casing : (Double / Single Skin)
- Rigid corrosion resistant extruded aluminium hollow framework held together with fiber glass corner joints.
- Double skin sand-witched panels with inner skin of 24 G (0.6 mm) plain galvanized steel sheets & outer skin of 24 G (0.6 mm) pre-coated galvanized steel sheet.
- Casing Panels are injected with high pressure PUF insulation having density of 38±2 kg/m³. Standard AHU models have 25 mm thick panel.
- Die cast aluminium hinges and nylon handle on each access door.
- Assembly is done using self drilling and self tapping galvanized sheet metal screws.
- Floor mounted Units are skid mounted. The base frame is rugged in construction made from galvanized steel sheet.
- Ceiling suspended fan section are also available.
- Double skin casing is standard.
- SINGLE SKIN casing in 18 / 16 gauge pre-coated GI sheet is also available as an option.
Salient Features
- 200 mm extended insulated drain pan in GI / SS (Optional)
- 3 rows cooling and 1 row heating coil (Optional)
- Wide capacity range :2040 CMH to 59500 CMH
- 4 rows cooling coil (Optional)
- External static pressure of 0 , 3 , 6 and 8 mm (Optional)
